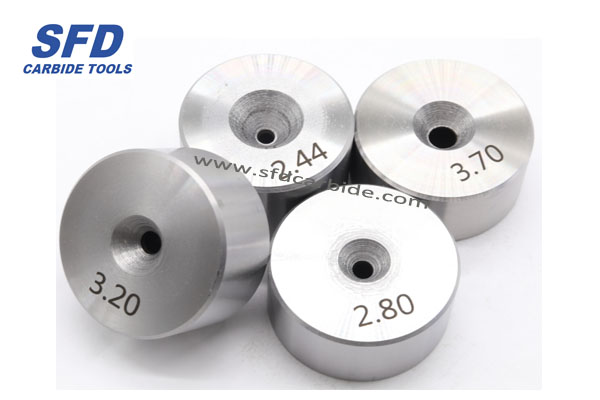

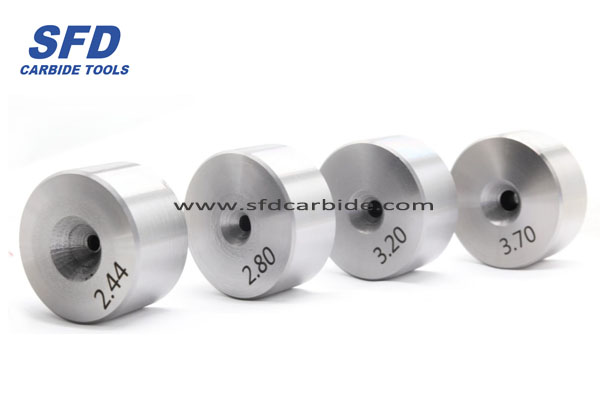

PCD Wire Drawing Dies
SFD PCD wire drawing dies can be used to draw square, rectangular, triangular, hexagonal, octagonal, semi-circular,elliptical, fan-shaped, Z-shaped, and tile-shaped wires. The minimum square wire eye size is 0.18x0.18mm, the minimum rectangular wire eye size is 0.08x0. 20mm, the minimum semi-circular wire eye size is 0.20x0.40mm, and the minimum triangular wire eyesize is 0.25x0.25mm. The sharp corners can reach 0.01mm, with a tolerance control of around ±0.001mm.
SFD Polycrystalline Diamond (PCD) Shaped Wire Drawing Dies are manufactured using high-quality die cores,which have the following advantages:
- Uniform material composition
- Strong wear resistance
- High surface finish
- High precision
- Long service life These features ensure that the surface quality and accuracy of the drawn wire can be maintained overlong production runs.
The PCD dies can produce a variety of shaped wires, including:
- Flat dies (minimum thickness 0.05mm)
- Square dies (minimum 0.1x0.10mm)
- Hexagonal dies (minimum S0.10mm)
The dies can be used to draw square, rectangular, triangular, hexagonal, octagonal, semi-circular,elliptical, fan-shaped, Z-shaped, and tile-shaped wires. The minimum square wire eye size is 0.18x0.18mm, the minimum rectangular wire eye size is 0.08x0. 20mm, the minimum semi-circular wire eye size is 0.20x0.40mm, and the minimum triangular wire eyesize is 0.25x0.25mm. The sharp corners can reach 0.01mm, with a tolerance control of around ±0.001mm.
Suitable for applications such as enameled flat wires, stainless steel, ferrous metal wires and tubes,specialty shaped wires, and electronic component parts.
